Micro-assemblytools
Besides wedge bonding tools, we supply a full range of micro-assembly tools, developed and customized to order.
Shown: glue dipping head SM-DH-0001 · SUS440CDrag to turn · click the stage, then scroll to zoom
The dipping head
Glue dipping heads are custom-made for fast, even dispensing.
- 01Shank Ø3.175 mm
- 02Flange Ø6 mm
- 0311 mm overall
- 04SUS440C stainless steel
- Station
- 01 / 04
- Part
- SM-DH-0001 · SUS440C
The face
This head was made to a customer's drawing.
- 01Face 7.8 × 2.3 mm
- 020.2 mm pins across the face
- 03±0.02 mm on the face width and length
- 04Made to the customer's drawing
- Station
- 02 / 04
- Part
- SM-DH-0001 · SUS440C
Dip and transfer
The head takes a measured amount of adhesive from the glue plate and places it on the pad on the frame.
- 01Dip into the glue plate
- 02Carry the adhesive to the frame
- 03Transfer it to the pad
- 04Mainly for LED and optical communication products
- Station
- 03 / 04
- Part
- SM-DH-0001 · SUS440C

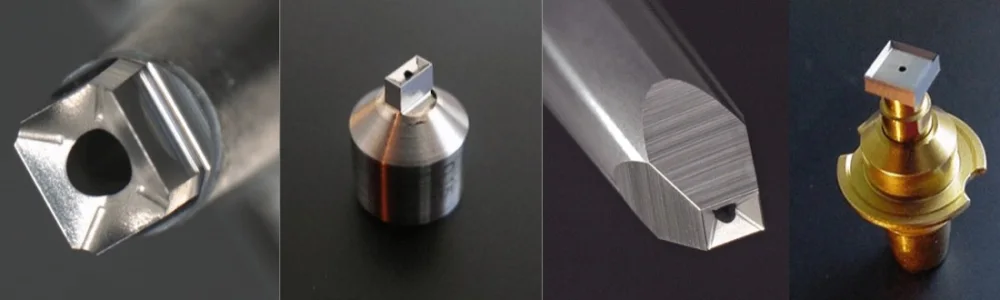

More tools
Hook needles, push blades, cutters (wire clamps), ejector pins and other micro-assembly tools are also available, made to order.
- 01Tweezers
- 02Cutters and wire clamps
- 03Push blades and holders
- 04Hook and cleaning needles
- Station
- 04 / 04
- Part
- SM-DH-0001 · SUS440C
01
Key facts
- Range
- Besides wedge bonding tools, a full range of micro-assembly tools, developed and customized to order
- Glue dipping heads
- Takes a measured amount of adhesive from the glue plate and places it on the pad on the frame. Used mostly for LED and optical communication products
- Tweezers
- Handle gold wire and small components, with a choice of materials and tip shapes
- Ejector pins, holders and caps
- Common in die attach and die sorting. During pick-up the pin pushes the die up from below, which helps it come away from the PVC film
- Made to order
- Hook needles, push blades, cutters (wire clamps), ejector pins and other micro-assembly tools
Custom tools are made to your drawing. All dimensions and tolerances are for reference only.
02
Tool groups
- 01

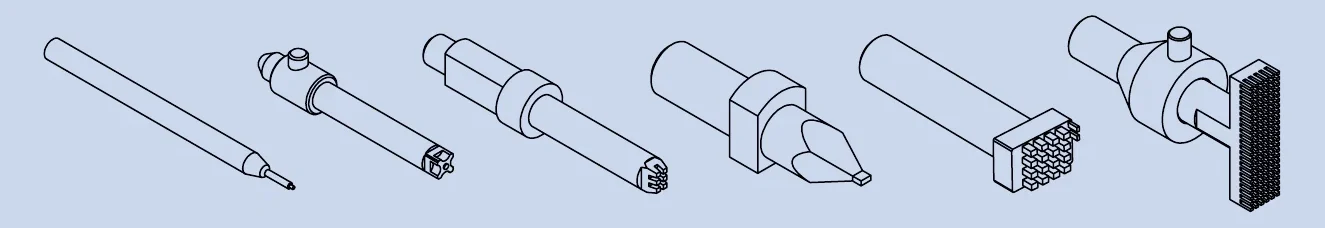

Glue dipping heads
- 02

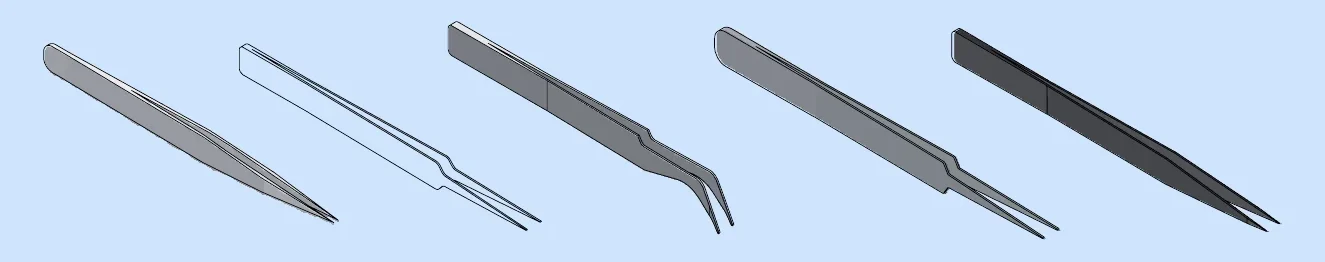

Tweezers
- 03

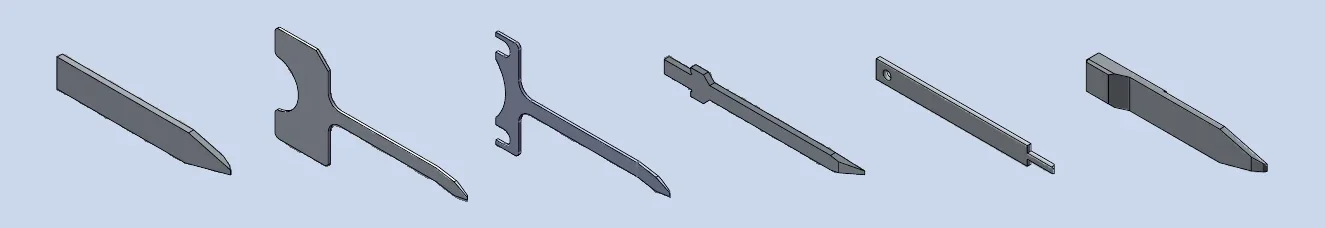

Cutters and wire clamps
- 04

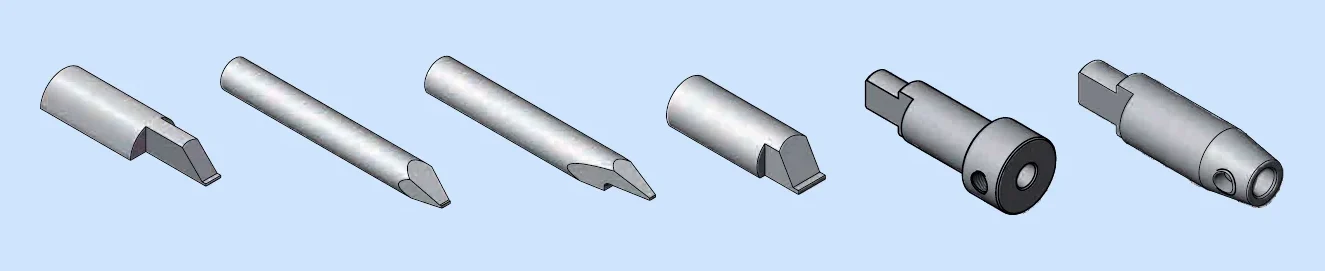

Push blades and holders
- 05

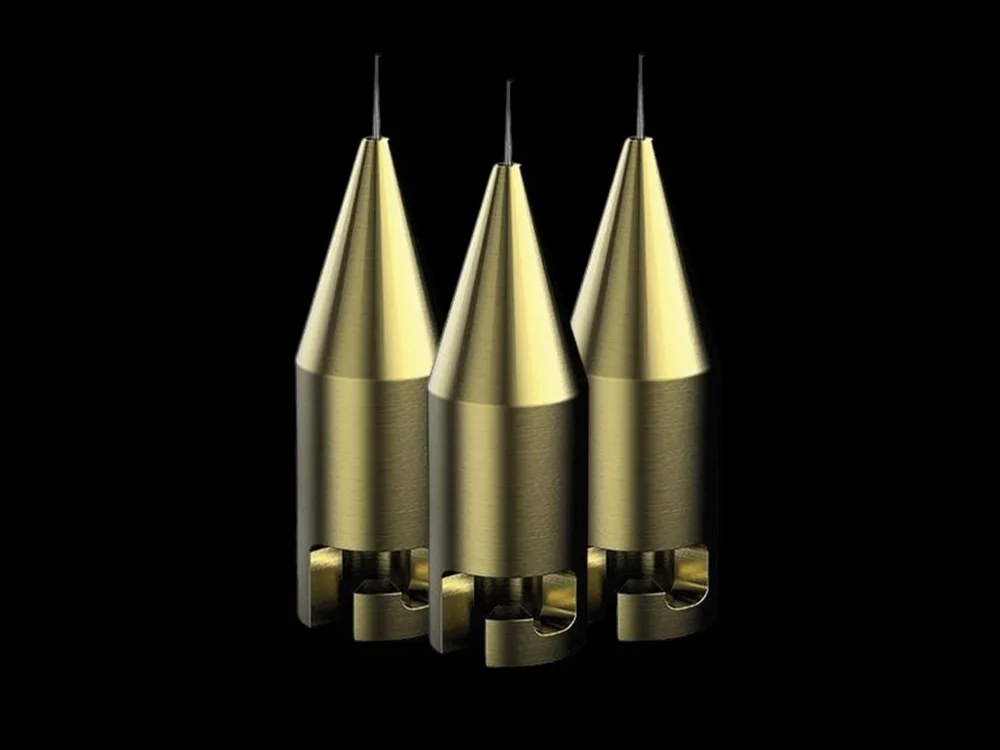

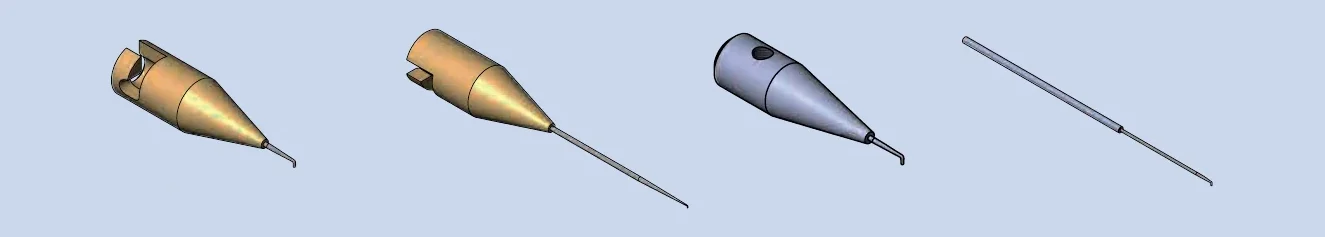

Hook needles
- 06

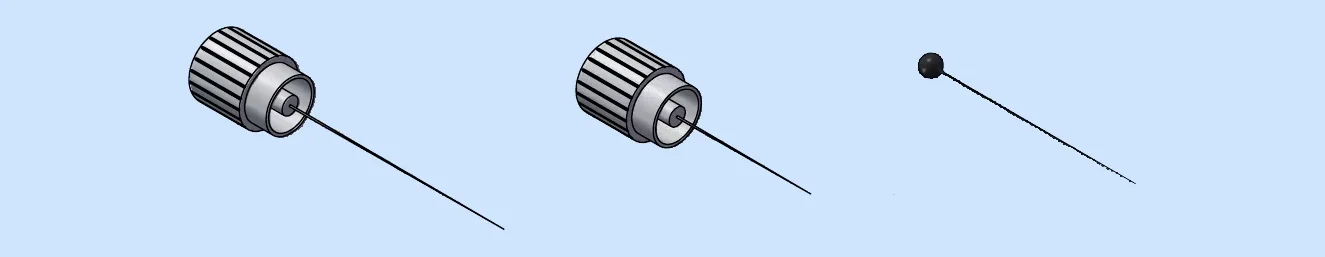

Cleaning needles
From the product catalog, page 46.
03
In detail
The viewer above shows glue dipping head SM-DH-0001, made to a customer drawing: a 7.8 × 2.3 mm face of 0.2 mm pins in SUS440C.
Send us your drawing04
Designs in 3D
Choose a design, then drag it to turn it in any direction. Request a quote with its number, or send us your own drawing.
Glue dipping head
SM-DH-0001
- SUS440C stainless steel
- Face 7.8 × 2.3 mm, ±0.02 mm
- 0.2 mm pins across the face
Drag the model to turn it, or focus it and use the arrow keys.
Need a different tool? Send your drawing and we will propose a design.
The 3D model needs WebGL 2.
Send us your drawing
Send a drawing or describe what you need, and we will propose a tool to match.
