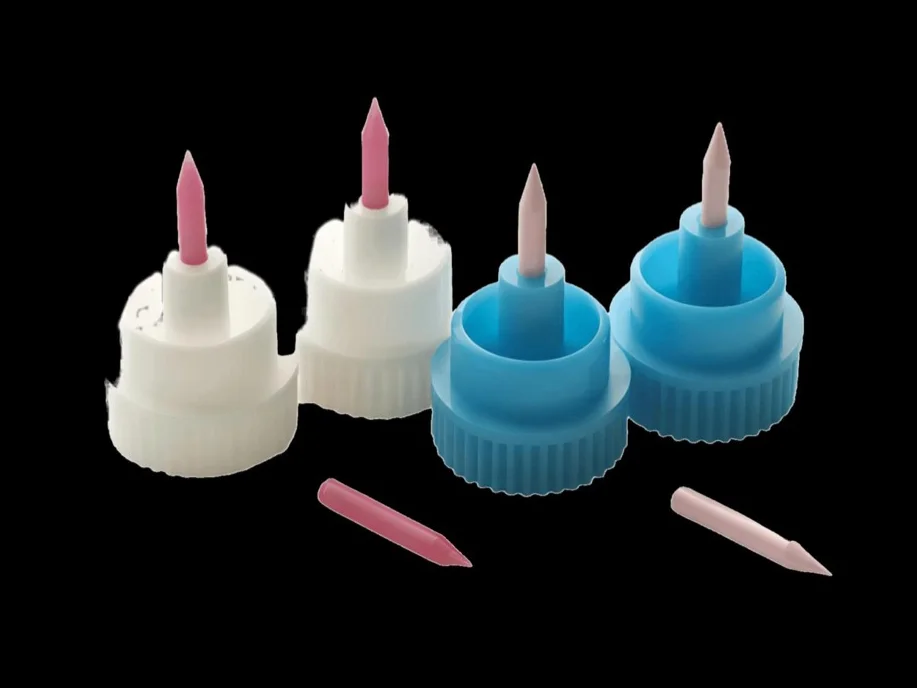

Ceramiccapillaries
Built for automatic bonders and high-volume production, ceramic capillaries are also easy to machine.
Shown: SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250 · Ø1.585 × 15.88 mmDrag to turn · click the stage, then scroll to zoom
The capillary
Built for automatic bonders and high-volume production, ceramic capillaries are also easy to machine.
- 01Bottleneck or standard design
- 02Length 9.52 to 19.05 mm
- 03Material Z (ZTA) or A (Al₂O₃)
- 04Body Ø1.585 mm
- Station
- 01 / 04
- Part
- SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250
The tip
Each size in the part number is a dimension of the tip.
- 01H, hole diameter
- 02CD, chamfer diameter
- 03T, tip diameter
- 04OR, outer radius
- Station
- 02 / 04
- Part
- SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250
The angles
The bottleneck design has a narrow bottleneck section just above the tip.
- 01MTA, main taper angle: 10° to 50°
- 02FA, foot angle: 0° to 15°
- 03BNA, bottleneck angle
- 04BNL, bottleneck length
- Station
- 03 / 04
- Part
- SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250
Ball bonding
Common ball bonding capillaries, in bottleneck and standard designs.
- 01Wire through the hole
- 02A ball at the tip
- 03The tip bonds it onto the pad
- 0449 common models, or made to your drawing
- Station
- 04 / 04
- Part
- SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250
01
Key facts
- Use
- Ball bonding on automatic bonders and in high-volume production. Easy to machine
- Designs
- Bottleneck (B) and standard (S)
- Material
- ZTA (Z) or alumina, Al₂O₃ (A), or custom
- Lengths
- 9.52, 11.1, 11.94, 15.88 and 19.05 mm, on a Ø1.585 mm body
- Tip finish
- Polish (P) or matte (M)
Sizes not listed here can be made on request. Dimensions and tolerances are for reference.
02
Part numbering
SC-BZ-H33-T140-CD64-15.88-30/8-OR30-90-M-BN10/250
Sample Sunns number · bottleneck design. Every value is written out, so the number alone describes the tool. Standard designs end at the tip finish.
- SCSunns ceramic capillary
- BZDesign and materialB bottleneck · S standard · then Z ZTA · A alumina
- H33Hole diameter (µm)
- T100Tip diameter (µm)
- CD46Chamfer diameter (µm)
- 15.88Length (mm)9.52 · 11.1 · 11.94 · 15.88 · 19.05
- 20/11Main taper angle / foot angle (°)
- OR13Outer radius (µm)
- 90Inner chamfer angle (°)70 · 90 · 120
- MTip finishP polish · M matte
- BN10/250Bottleneck angle (°) / length (µm), bottleneck design only
03
Common models
Design
49 of 49 models
| CDµm | FA° | MTA° | ORµm | ICA° | BNA° | BNLµm | Design | Quote | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-BZ-H25-T80-CD41-11.1-20/8-OR13-90-M-BN10/200 | 11.1 | 25 | 80 | 41 | 8 | 20 | 13 | 90 | 10 | 200 | Bottleneck | Quote SC-BZ-H25-T80-CD41-11.1-20/8-OR13-90-M-BN10/200 |
| SC-BZ-H25-T80-CD35-19.05-20/8-OR13-90-M-BN10/230 | 19.05 | 25 | 80 | 35 | 8 | 20 | 13 | 90 | 10 | 230 | Bottleneck | Quote SC-BZ-H25-T80-CD35-19.05-20/8-OR13-90-M-BN10/230 |
| SC-SZ-H25-T127-CD38-11.1-20/8-OR25-90-M | 11.1 | 25 | 127 | 38 | 8 | 20 | 25 | 90 | – | – | Standard | Quote SC-SZ-H25-T127-CD38-11.1-20/8-OR25-90-M |
| SC-SZ-H25-T132-CD33-11.1-20/8-OR25-70-M | 11.1 | 25 | 132 | 33 | 8 | 20 | 25 | 70 | – | – | Standard | Quote SC-SZ-H25-T132-CD33-11.1-20/8-OR25-70-M |
| SC-BZ-H25-T140-CD46-15.88-20/8-OR25-90-M-BN10/400 | 15.88 | 25 | 140 | 46 | 8 | 20 | 25 | 90 | 10 | 400 | Bottleneck | Quote SC-BZ-H25-T140-CD46-15.88-20/8-OR25-90-M-BN10/400 |
| SC-SZ-H25-T140-CD46-15.88-30/8-OR25-90-M | 15.88 | 25 | 140 | 46 | 8 | 30 | 25 | 90 | – | – | Standard | Quote SC-SZ-H25-T140-CD46-15.88-30/8-OR25-90-M |
| SC-SZ-H25-T140-CD64-19.05-20/8-OR20-90-M | 19.05 | 25 | 140 | 64 | 8 | 20 | 20 | 90 | – | – | Standard | Quote SC-SZ-H25-T140-CD64-19.05-20/8-OR20-90-M |
| SC-BZ-H28-T100-CD41-11.1-20/8-OR13-90-M-BN10/500 | 11.1 | 28 | 100 | 41 | 8 | 20 | 13 | 90 | 10 | 500 | Bottleneck | Quote SC-BZ-H28-T100-CD41-11.1-20/8-OR13-90-M-BN10/500 |
| SC-SZ-H28-T100-CD45-15.88-20/8-OR20-90-M | 15.88 | 28 | 100 | 45 | 8 | 20 | 20 | 90 | – | – | Standard | Quote SC-SZ-H28-T100-CD45-15.88-20/8-OR20-90-M |
| SC-SZ-H28-T120-CD41-11.1-20/8-OR15-90-M | 11.1 | 28 | 120 | 41 | 8 | 20 | 15 | 90 | – | – | Standard | Quote SC-SZ-H28-T120-CD41-11.1-20/8-OR15-90-M |
| SC-BZ-H28-T120-CD46-11.1-20/8-OR18-90-M-BN10/250 | 11.1 | 28 | 120 | 46 | 8 | 20 | 18 | 90 | 10 | 250 | Bottleneck | Quote SC-BZ-H28-T120-CD46-11.1-20/8-OR18-90-M-BN10/250 |
| SC-SZ-H28-T180-CD51-11.1-20/11-OR25-90-M | 11.1 | 28 | 180 | 51 | 11 | 20 | 25 | 90 | – | – | Standard | Quote SC-SZ-H28-T180-CD51-11.1-20/11-OR25-90-M |
| SC-BZ-H30-T97-CD41-11.1-20/8-OR20-70-M-BN10/254 | 11.1 | 30 | 97 | 41 | 8 | 20 | 20 | 70 | 10 | 254 | Bottleneck | Quote SC-BZ-H30-T97-CD41-11.1-20/8-OR20-70-M-BN10/254 |
| SC-BZ-H33-T85-CD43-19.05-20/11-OR13-90-M-BN10/200 | 19.05 | 33 | 85 | 43 | 11 | 20 | 13 | 90 | 10 | 200 | Bottleneck | Quote SC-BZ-H33-T85-CD43-19.05-20/11-OR13-90-M-BN10/200 |
| SC-BZ-H33-T90-CD40-11.1-20/11-OR12-90-M-BN10/200 | 11.1 | 33 | 90 | 40 | 11 | 20 | 12 | 90 | 10 | 200 | Bottleneck | Quote SC-BZ-H33-T90-CD40-11.1-20/11-OR12-90-M-BN10/200 |
| SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250 | 15.88 | 33 | 100 | 46 | 11 | 20 | 13 | 90 | 10 | 250 | Bottleneck | Quote SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250 |
| SC-SZ-H33-T100-CD41-15.88-15/8-OR13-90-M | 15.88 | 33 | 100 | 41 | 8 | 15 | 13 | 90 | – | – | Standard | Quote SC-SZ-H33-T100-CD41-15.88-15/8-OR13-90-M |
| SC-SZ-H33-T100-CD46-15.88-30/11-OR12-90-M* check | 15.88 | 33 | 100 | 46 | 11 | 30 | 12 | 90 | – | – | Standard | Quote SC-SZ-H33-T100-CD46-15.88-30/11-OR12-90-M |
| SC-BZ-H33-T102-CD53-11.1-20/8-OR20-90-M-BN10/260 | 11.1 | 33 | 102 | 53 | 8 | 20 | 20 | 90 | 10 | 260 | Bottleneck | Quote SC-BZ-H33-T102-CD53-11.1-20/8-OR20-90-M-BN10/260 |
| SC-SZ-H33-T130-CD51-11.1-20/8-OR20-90-M | 11.1 | 33 | 130 | 51 | 8 | 20 | 20 | 90 | – | – | Standard | Quote SC-SZ-H33-T130-CD51-11.1-20/8-OR20-90-M |
| SC-SZ-H33-T130-CD58-11.1-20/11-OR25-90-M | 11.1 | 33 | 130 | 58 | 11 | 20 | 25 | 90 | – | – | Standard | Quote SC-SZ-H33-T130-CD58-11.1-20/11-OR25-90-M |
| SC-SZ-H33-T140-CD56-15.88-20/8-OR30-90-M | 15.88 | 33 | 140 | 56 | 8 | 20 | 30 | 90 | – | – | Standard | Quote SC-SZ-H33-T140-CD56-15.88-20/8-OR30-90-M |
| SC-SZ-H33-T140-CD58-19.05-20/8-OR25-120-M | 19.05 | 33 | 140 | 58 | 8 | 20 | 25 | 120 | – | – | Standard | Quote SC-SZ-H33-T140-CD58-19.05-20/8-OR25-120-M |
| SC-SZ-H33-T140-CD64-19.05-20/8-OR20-90-M | 19.05 | 33 | 140 | 64 | 8 | 20 | 20 | 90 | – | – | Standard | Quote SC-SZ-H33-T140-CD64-19.05-20/8-OR20-90-M |
| SC-SZ-H33-T150-CD60-11.1-15/8-OR20-90-M | 11.1 | 33 | 150 | 60 | 8 | 15 | 20 | 90 | – | – | Standard | Quote SC-SZ-H33-T150-CD60-11.1-15/8-OR20-90-M |
| SC-SZ-H33-T165-CD51-11.1-20/8-OR20-90-M | 11.1 | 33 | 165 | 51 | 8 | 20 | 20 | 90 | – | – | Standard | Quote SC-SZ-H33-T165-CD51-11.1-20/8-OR20-90-M |
| SC-SZ-H33-T165-CD63-11.1-20/8-OR30-90-M* check | 11.1 | 33 | 165 | 63 | 8 | 20 | 30 | 90 | – | – | Standard | Quote SC-SZ-H33-T165-CD63-11.1-20/8-OR30-90-M |
| SC-SZ-H33-T165-CD51-15.88-20/8-OR38-90-M | 15.88 | 33 | 165 | 51 | 8 | 20 | 38 | 90 | – | – | Standard | Quote SC-SZ-H33-T165-CD51-15.88-20/8-OR38-90-M |
| SC-SZ-H33-T180-CD64-15.88-20/8-OR30-90-M | 15.88 | 33 | 180 | 64 | 8 | 20 | 30 | 90 | – | – | Standard | Quote SC-SZ-H33-T180-CD64-15.88-20/8-OR30-90-M |
| SC-SZ-H33-T180-CD64-19.05-20/8-OR30-90-M | 19.05 | 33 | 180 | 64 | 8 | 20 | 30 | 90 | – | – | Standard | Quote SC-SZ-H33-T180-CD64-19.05-20/8-OR30-90-M |
| SC-SZ-H38-T130-CD74-19.05-20/8-OR25-90-M | 19.05 | 38 | 130 | 74 | 8 | 20 | 25 | 90 | – | – | Standard | Quote SC-SZ-H38-T130-CD74-19.05-20/8-OR25-90-M |
| SC-BZ-H38-T132-CD56-11.1-20/11-OR30-90-M-BN10/254 | 11.1 | 38 | 132 | 56 | 11 | 20 | 30 | 90 | 10 | 254 | Bottleneck | Quote SC-BZ-H38-T132-CD56-11.1-20/11-OR30-90-M-BN10/254 |
| SC-SZ-H38-T140-CD64-15.88-30/8-OR30-90-M | 15.88 | 38 | 140 | 64 | 8 | 30 | 30 | 90 | – | – | Standard | Quote SC-SZ-H38-T140-CD64-15.88-30/8-OR30-90-M |
| SC-SZ-H38-T140-CD58-19.05-20/8-OR30-90-M | 19.05 | 38 | 140 | 58 | 8 | 20 | 30 | 90 | – | – | Standard | Quote SC-SZ-H38-T140-CD58-19.05-20/8-OR30-90-M |
| SC-BZ-H38-T150-CD64-11.1-20/8-OR30-90-M-BN10/300 | 11.1 | 38 | 150 | 64 | 8 | 20 | 30 | 90 | 10 | 300 | Bottleneck | Quote SC-BZ-H38-T150-CD64-11.1-20/8-OR30-90-M-BN10/300 |
| SC-SZ-H38-T165-CD68-15.88-15/8-OR30-90-M | 15.88 | 38 | 165 | 68 | 8 | 15 | 30 | 90 | – | – | Standard | Quote SC-SZ-H38-T165-CD68-15.88-15/8-OR30-90-M |
| SC-SZ-H38-T170-CD74-15.88-20/8-OR25-120-M | 15.88 | 38 | 170 | 74 | 8 | 20 | 25 | 120 | – | – | Standard | Quote SC-SZ-H38-T170-CD74-15.88-20/8-OR25-120-M |
| SC-SZ-H38-T170-CD74-19.05-15/8-OR25-120-M | 19.05 | 38 | 170 | 74 | 8 | 15 | 25 | 120 | – | – | Standard | Quote SC-SZ-H38-T170-CD74-19.05-15/8-OR25-120-M |
| SC-SZ-H38-T170-CD74-19.05-20/8-OR25-120-M | 19.05 | 38 | 170 | 74 | 8 | 20 | 25 | 120 | – | – | Standard | Quote SC-SZ-H38-T170-CD74-19.05-20/8-OR25-120-M |
| SC-SZ-H38-T180-CD68-15.88-20/8-OR38-90-M | 15.88 | 38 | 180 | 68 | 8 | 20 | 38 | 90 | – | – | Standard | Quote SC-SZ-H38-T180-CD68-15.88-20/8-OR38-90-M |
| SC-SZ-H46-T200-CD78-19.05-20/8-OR30-90-M | 19.05 | 46 | 200 | 78 | 8 | 20 | 30 | 90 | – | – | Standard | Quote SC-SZ-H46-T200-CD78-19.05-20/8-OR30-90-M |
| SC-SZ-H46-T225-CD89-11.1-20/8-OR38-120-M | 11.1 | 46 | 225 | 89 | 8 | 20 | 38 | 120 | – | – | Standard | Quote SC-SZ-H46-T225-CD89-11.1-20/8-OR38-120-M |
| SC-SZ-H51-T225-CD92-15.88-20/8-OR51-90-M | 15.88 | 51 | 225 | 92 | 8 | 20 | 51 | 90 | – | – | Standard | Quote SC-SZ-H51-T225-CD92-15.88-20/8-OR51-90-M |
| SC-SZ-H51-T236-CD102-19.05-20/8-OR20-120-M | 19.05 | 51 | 236 | 102 | 8 | 20 | 20 | 120 | – | – | Standard | Quote SC-SZ-H51-T236-CD102-19.05-20/8-OR20-120-M |
| SC-SZ-H51-T258-CD114-15.88-20/8-OR38-90-M | 15.88 | 51 | 258 | 114 | 8 | 20 | 38 | 90 | – | – | Standard | Quote SC-SZ-H51-T258-CD114-15.88-20/8-OR38-90-M |
| SC-BZ-H64-T200-CD92-19.05-20/11-OR38-90-M-BN10/270 | 19.05 | 64 | 200 | 92 | 11 | 20 | 38 | 90 | 10 | 270 | Bottleneck | Quote SC-BZ-H64-T200-CD92-19.05-20/11-OR38-90-M-BN10/270 |
| SC-SZ-H64-T250-CD102-15.88-20/8-OR38-90-M | 15.88 | 64 | 250 | 102 | 8 | 20 | 38 | 90 | – | – | Standard | Quote SC-SZ-H64-T250-CD102-15.88-20/8-OR38-90-M |
| SC-SZ-H64-T250-CD92-15.88-20/8-OR50-90-M | 15.88 | 64 | 250 | 92 | 8 | 20 | 50 | 90 | – | – | Standard | Quote SC-SZ-H64-T250-CD92-15.88-20/8-OR50-90-M |
| SC-SZ-H64-T330-CD142-19.05-20/8-OR64-90-M | 19.05 | 64 | 330 | 142 | 8 | 20 | 64 | 90 | – | – | Standard | Quote SC-SZ-H64-T330-CD142-19.05-20/8-OR64-90-M |
All models: body Ø1.585 mm, material Z (ZTA). * check: two values in the catalog disagree with each other for this model; the table value is shown until confirmed.
04
Supplied
Need a size that isn't listed? Send a drawing or describe what you need, and we will propose a tool to match.
Request a quote05
Designs in 3D
Choose a design, then drag it to turn it in any direction. Request a quote with its number, or send us your own drawing.
Bottleneck capillary
SC-BZ-H33-T100-CD46-15.88-20/11-OR13-90-M-BN10/250
- Hole H 33 µm · tip T 100 µm · chamfer CD 46 µm
- Length 15.88 mm · body Ø1.585 mm
- Bottleneck 10° over 250 µm
Drag the model to turn it, or focus it and use the arrow keys.
The 3D model needs WebGL 2.
Send us your drawing
Send a drawing or describe what you need, and we will propose a tool to match.
