Square tip with vacuum hole
SN-WC-3.175S02-L12-SQ1.0x0.6-H0.3-(WT0.05)
- 1Material
- 2Shank dia. and style
- 3Overall length
- 4Tip length × width
- 5Tip vacuum hole dia.
- 6Tip wall width · optional
Die attachtools
A pick-up nozzle picks up and places dies during chip packaging, bonding and the production of other electronic components. It is a precision consumable, replaced as it wears.
Shown: pick-up nozzle SN-D-0001 · 3.0 × 0.2 mm slotDrag to turn · click the stage, then scroll to zoom
The nozzle
Nozzles come in a range of materials and designs, chosen to suit the product.
- 01Shank: Ø3.175 mm or Ø1.585 mm
- 02Shank style and overall length
- 03Tip: style, length, width and wall width
- 04Tip vacuum hole
- Station
- 01 / 04
- Part
- SN-D-0001 · 3.0 × 0.2
Tip and vacuum
Micro holes and shaped holes, 0.01 to 0.4 mm.
- 01Tip styles: flat or pyramid
- 02Slot 3.0 × 0.2 mm
- 03Ø0.1 mm vacuum holes on a 0.8 mm pitch
- 04Head 10 × 6.25 mm
- Station
- 02 / 04
- Part
- SN-D-0001 · 3.0 × 0.2
Pick-up
A pick-up nozzle is a precision consumable that picks up dies during chip packaging.
- 01Die length
- 02Die width
- 03Die thickness
- 04Vacuum holds the die on the tip
- Station
- 03 / 04
- Part
- SN-D-0001 · 3.0 × 0.2
Four materials
Choose metal, bakelite, rubber or ceramic. Each is in use on customer production lines in China and abroad.

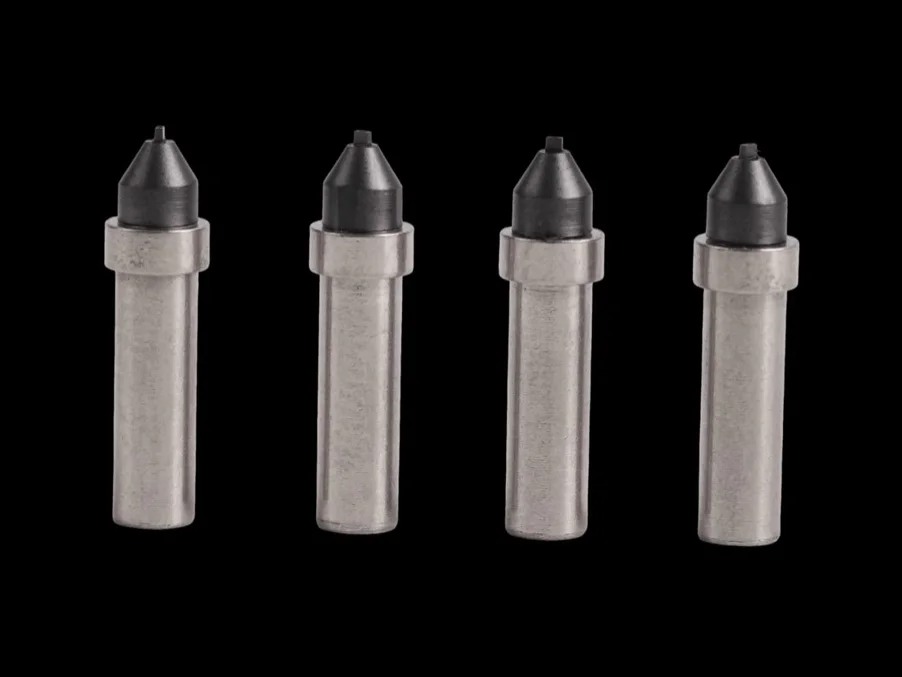

- 01Tungsten carbide
- 02Bakelite

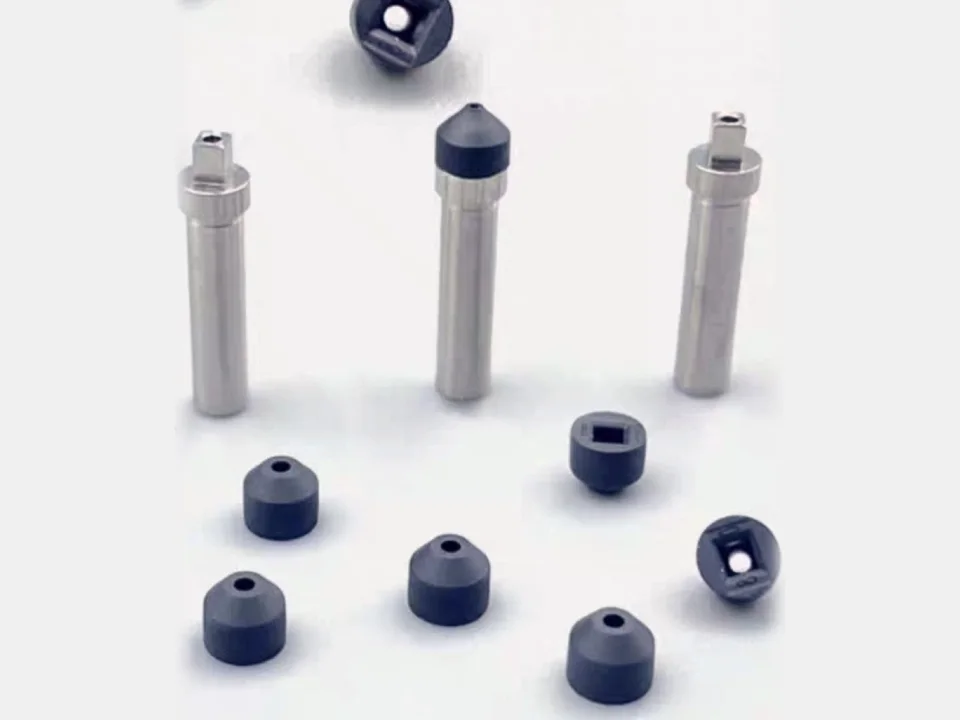

- 03Rubber
- 04Ceramic
- Station
- 04 / 04
- Part
- SN-D-0001 · 3.0 × 0.2
01
Key facts
- Materials
- Tungsten carbide, bakelite, rubber and ceramic, each in use on customer production lines in China and abroad
- Shank
- Ø3.175 mm or Ø1.585 mm
- Tip styles
- Square tip with vacuum hole, die-sized pyramid tip, round tip
- Machines
- Fits DATACON, PALOMAR, YAMAHA and other die bonders and placement machines
- Custom
- Send a drawing or describe what you need, and we will propose a tool to match
Sizes not listed here can be made on request. Dimensions and tolerances are for reference.
02
Nozzle types
Die-sized pyramid tip
SN-WC-1.585S01-L10-PY2.0x1.2x0.2
- 1Material
- 2Shank dia. and style
- 3Overall length
- 4Die length × width × thickness

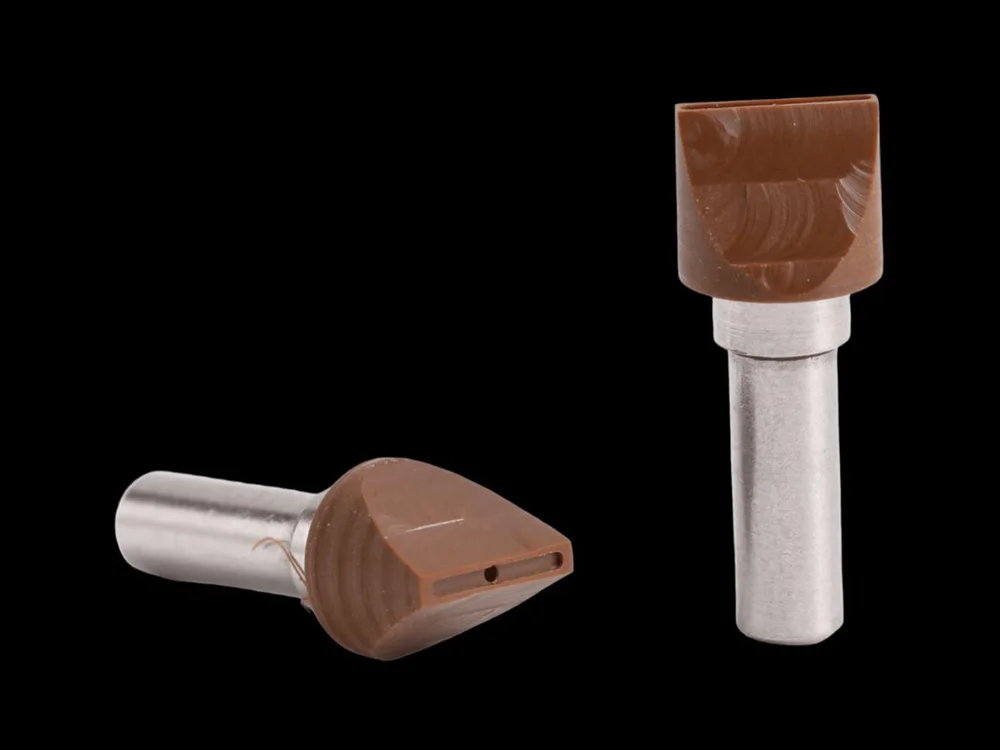

Bakelite square tip
SN-BK-3.175S04-L12-SQ1.0x0.6-H0.3-(WT0.05)
- 1Material
- 2Shank dia. and style
- 3Overall length
- 4Tip length × width
- 5Tip vacuum hole dia.
- 6Tip wall width · optional
Round bakelite tip
SN-BK-3.175S52-L12-RD0.8-H0.3-(R6x1.6)
- 1Material
- 2Shank dia. and style
- 3Overall length
- 4Tip outer dia.
- 5Tip vacuum hole dia.
- 6Shank relief length × dia. · optional
Sunns nozzle numbers start with SN, then material (WC tungsten carbide, BK bakelite, RB rubber, CE ceramic, MT metal), shank diameter and style, length, and the tip sizes in mm. Nozzles made to a drawing get their own number, such as SN-D-0001.
We also make other common nozzle shapes for other machines. Tell us your machine and die size
03
Materials
Ceramic nozzles are also available. The viewer above previews each finish on the same nozzle shape.
04
Decode a part number
Paste a Sunns nozzle number to see what each part means.
05
Inspection
Keyence VHX-7000 digital microscope for in-process control. An inspection image is kept for every product.
- In process
- In-process control on the Keyence VHX-7000
- Every product
- An inspection image is kept for every product
- Tip face

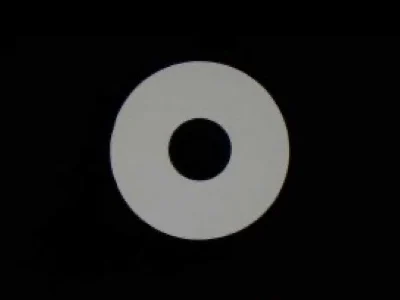

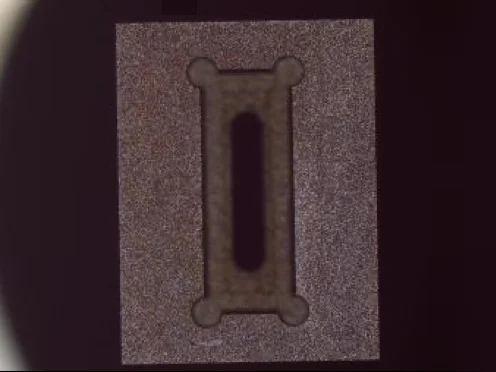

- Microscope view of the tip face
- Raw material
- Raw material analysis on the Zeiss EVO 18 SEM, with EDS and WDS
06
Designs in 3D
Choose a design, then drag it to turn it in any direction. Request a quote with its number, or send us your own drawing.
Slotted pick-up nozzle
SN-D-0001
- Slot 3.0 × 0.2 mm, Ø0.1 mm vacuum holes on a 0.8 mm pitch
- Head 10 × 6.25 mm
- Shank Ø3.175 mm
Drag the model to turn it, or focus it and use the arrow keys.
The 3D model needs WebGL 2.
Send us your drawing
Send a drawing or describe what you need, and we will propose a tool to match.
